AS-S150

SLOT MONOLITH DRAINAGE CHANNEL AS-S150
CE designation- Standard PN-EN 1433:2005
Declaration of Conformity
Hygienic Certificate HK/B/0786/01/2011
Catalogue No K.I.



Files to download

AS-S150

Position: K

DRAINAGE CHANNELS - INTERNAL WIDTH 150mm

K.I. Part No. Channels AS-S150 Width mm Height mm Length mm Weight kg Strenght
K.I.1. 1.1 with no slope 292 305 1000 158 F900

Draining water by means of multifunctional basin AS-ST200

Specyfikacja

{slider 1. Intended use – place of application}

draining roads, streets, garages, car parks, entrances, petrol stations, car washes, etc.

{slider 2. Technological capabilities}

  • parts with no internal slope
  • possibility to connect parts at some angle by means of multifunctional basin AS-ST200
  • draining water by means of multifunctional basin AS-ST200
  • basins with thrash boxes
  • blanking off covers

{slider 3. Technical information}

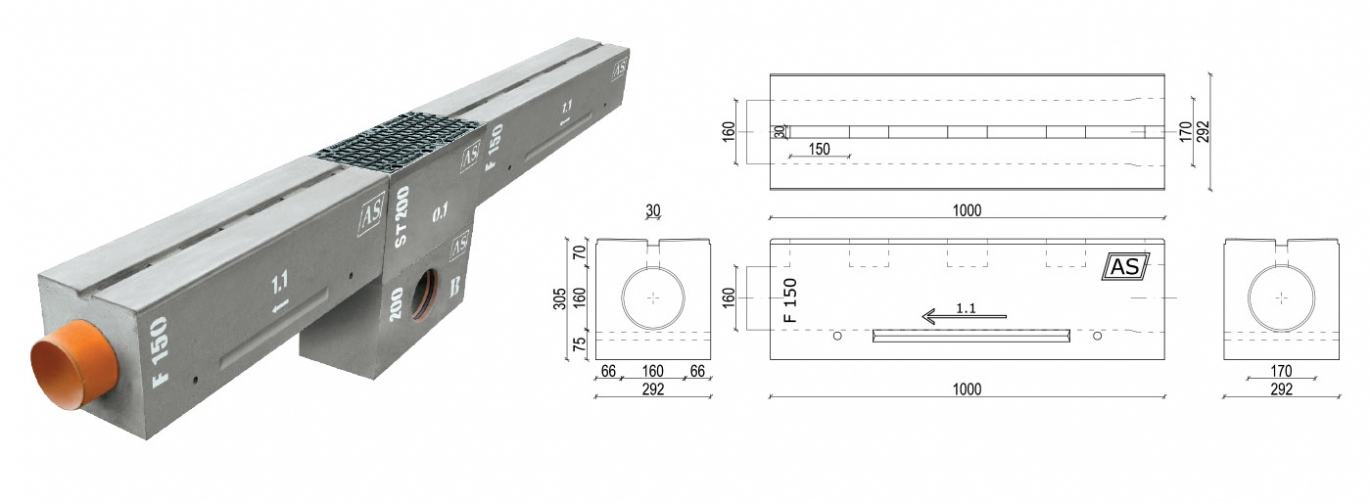

Dimensions:

  • length: 1000 mm
  • external width: 292 mm
  • internal width: 150 mm
  • height: 305 mm


Slot monolith drainage channel - is made of concrete in the C55/67 strength class with polymer additives and reinforced with alcali – resistant glass fibre. This concrete improves the properties of the channel and makes it more resistant to bending and hitting. This concrete is also resistant as well as to long – lasting exposure to frost and defrosting salts (“+R").

The inner part of a channel is covered with PVC layer which has many advantages:

-    chemical resistance
-    smooth inner surface
-    tight connection by means of a rubber gasket

Setting the channels  - on a concrete strip footing.

{slider 4. Quality, workmanship precision, and others}

This very simple and safe to install and apply product, entirely fabricated of Polish materials by a domestic company is of very high quality.

The top product quality is assured by AS PPH A. Sobiesiak due to applying "High Strength Concrete" and materials protected permanently against corrosion.

The guarantee of the top quality is the ISO 9001:2008 certificate, too.

{slider 5. Safety}

Applying AS drainage system does not cause any safety risk when installing it, however the general regulations of occupational safety and health for Construction and Installation works should be followed. Due to a solid grate fastening, the AS drainage systems are absolutely safe when utilizing the pavement.

Drainage of the pavement with the AS system and with simultaneous observance of the designing guidelines and installation instructions will enable to avoid troublesome breakdowns and a building degrading, and the maintenance will be limited to cleaning the channels using multifunctional basin AS-ST200 once a year.

{/sliders}

Photos

as-s150-galeria-3
as-s150-galeria-4
as-s150-galeria-6
as-s150-galeria-5
as-s150-galeria-7
as-s150-galeria-1
as-s150-galeria-2
